X-ray crystallography

Proto is excited to launch its newest product line featuring single-crystal diffractometers for x-ray crystallography. Your research deserves the best equipment on the market, and Proto is committed to delivering the most advanced, configurable systems available. From our proprietary high-precision bearings to advanced detector and micro-focus x-ray source options, your instrument will provide years of meaningful results.

With systems optimized for small-molecule crystallography, protein crystallography, and high-pressure crystallography, Proto offers versatile instruments to best suit your application.

Determining the structure of single-crystal materials is imperative to fully understanding their functions, and single-crystal XRD is an established and trusted method for investigating these materials.

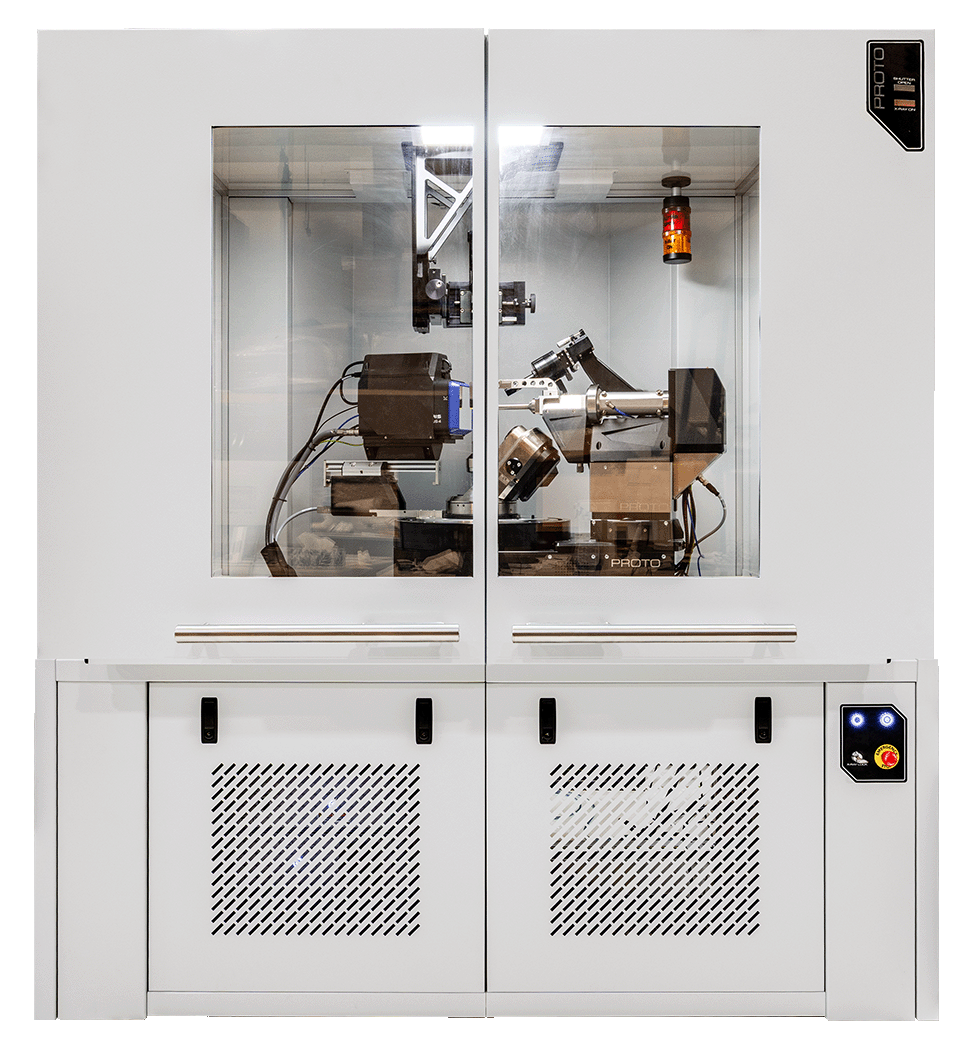

SC-1

For precise structural determination in small-molecule crystallography.

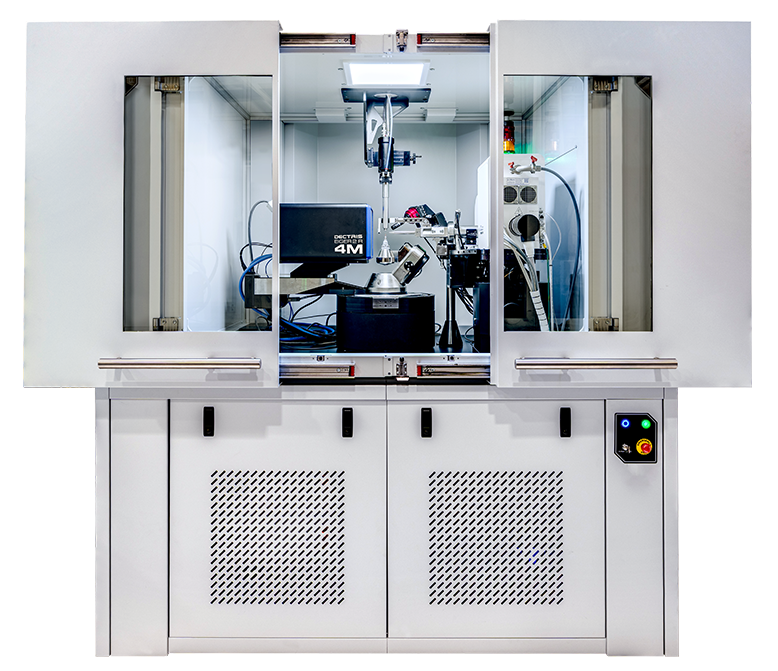

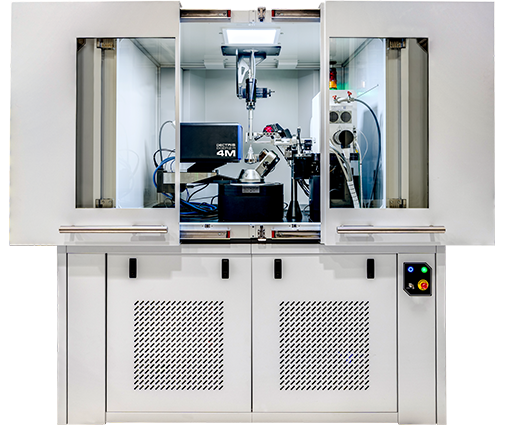

SC-1 MAX

Superior data resolution for advanced experiments, such as protein crystallography.

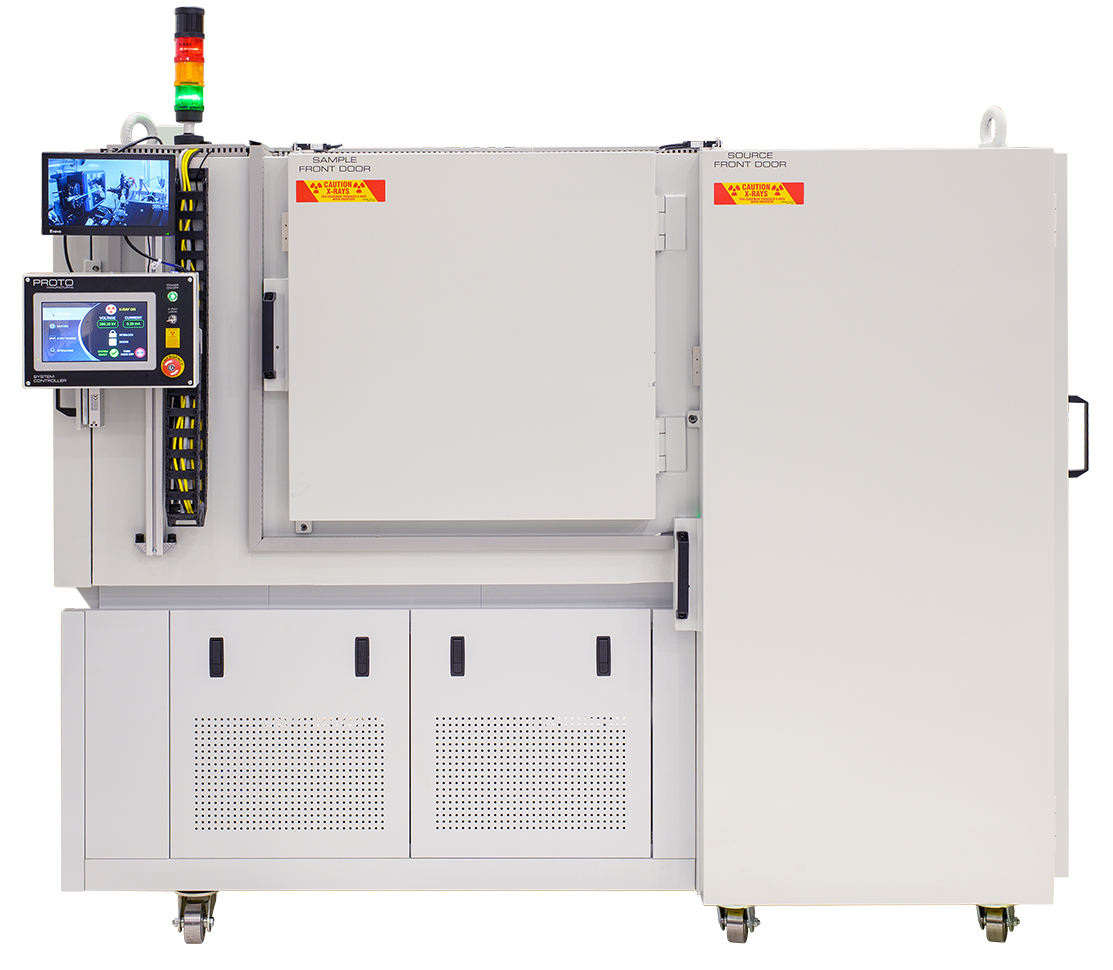

SC-1 HP

Synchrotron-level investigation of materials at high pressure.

REQUEST A QUOTE OR INFORMATION

Software and Applications

XCollect SC is Proto's flagship application for x-ray crystallography data collection and analysis. XCollect SC makes it easy to align and index samples, as well as select optimal collection strategies to suit your data quality needs. It also seamlessly integrates and scales scan data so that it can easily be exported to structure solution programs.

Features and Capabilities:

Easy-to-use sample centering and crystal measurement tools
Efficient spot finding and quick indexing
Collection strategy generation
Accurate integration, even from weak spots
Seamless merging and scaling procedure
Automatic twin search
Highly intuitive interface

XCollect SC software screen showing crystal centering

XCollect SC software screen showing refinement tab

XCollect SC software screen showing ROI heat map

XCollect SC software screen showing collection strategy

Unbeatable X-ray Detection

At Proto, we always choose the best possible x-ray detection systems for our equipment, which is why all of our x-ray crystallography systems are equipped with true photon-counting detectors. These detectors directly capture x-ray photons and convert them into an electrical signal. This direct conversion is advantageous because it yields zero dark noise, zero readout noise, high dynamic range, and excellent signal to noise. With our high-quality photon-counting detector options, you don't need to worry about detector saturation, allowing you to focus on your data.

We also offer CdTe sensors for the highest quantum efficiency with harder wavelengths.

DECTRIS® PILATUS4 R CdTe 260K

DECTRIS® PILATUS4 R CdTe 1M

DECTRIS® EIGER2 R CdTe 1M

DECTRIS® EIGER2 R CdTe 4M

high-brilliance X-ray sources

PROTO XRT MF

Sealed microfocus x-ray tube available with a Cu, Mo, or Ag anode.

METALJET SOURCES

Available models: D2+ or E1+; Ga or In anodes.

cooler options

OXFORD CRYOSTREAM 1000

Open-flow cryogenic gas cooler with a temperature range of 80–400 Kelvin (Standard) or 80–500 Kelvin (Plus or Compact).

OXFORD N-HELIX

Nitrogen or helium dual-flow cooler with a temperature range of 28–300 Kelvin (helium) or 100–300 Kelvin (nitrogen).

OXFORD COBRA

Cryogen-free open-flow cooler with a temperature range of 80–400 Kelvin (Standard) or 80–500 Kelvin (Plus).
