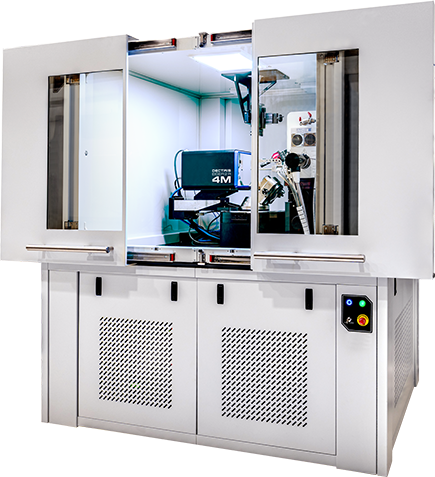

SC-1 MAX: X-ray Crystallography
Superior Data Resolution for Advanced Experiments such as Protein Crystallography

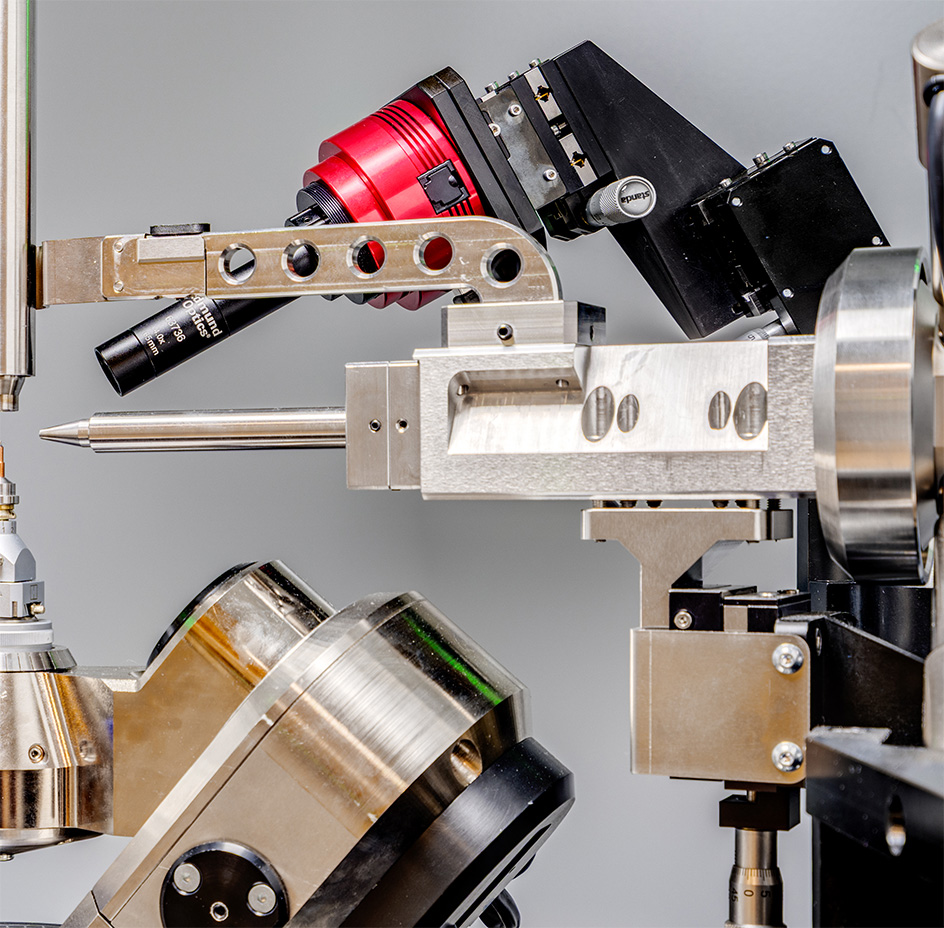

- Proprietary kappa goniometer with a high-precision, high-accuracy bearing
- High-brightness MetalJet x-ray source (Ga or In) for performance comparable to synchrotrons
- Industry-leading detector technology for the best possible dynamic range with zero background
- Novel data collection algorithms for maximizing completeness and redundancy in the shortest amount of time
- Magnetic goniometer heads and bases for easy crystal mounting
Bright X-ray Source
The MetalJet D2+ with liquid gallium or indium anode provides the highest x-ray flux in a laboratory system thanks to its exceptional brightness and 80-micron beam.

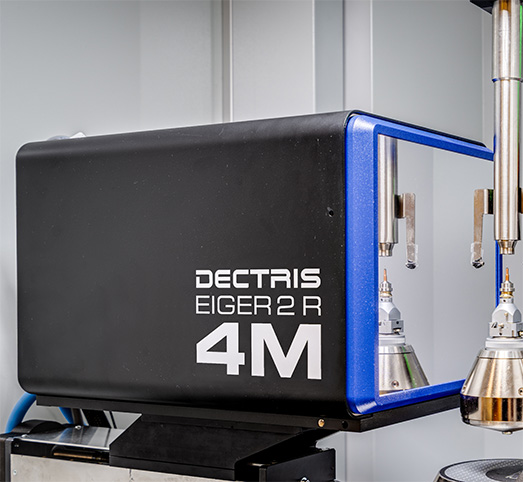

Unbeatable X-ray Detection
The best detection in x-ray crystallography: direct capture of x-ray photons, zero noise, unparalleled dynamic range, and the ultimate signal to noise. CdTe sensors available for the highest quantum efficiency with harder wavelengths.
X-ray Optics
Advanced multilayer x-ray optics for exceptional beam intensity.
Cryo Coolers
80–500 Kelvin temperature range.
