Custom METALJET X-RAY systems

Your trusted partner for transforming an idea into a high-end MetalJet system

metaljet brochure

download pdf

At Proto, we specialize in the design and creation of custom x-ray systems. Our team of experts has the skills and experience to develop a unique solution for even the most complex project. We are committed to providing excellent service throughout the brainstorming, design, and manufacturing stages, ensuring that you get a complete solution for your specific application. When your project is complete, our scientists will provide the training and support you need to maximize the impact of your system.

Proto® is a proud integrator of Excillum MetalJet sources

With higher power density than conventional x-ray sources, Excillum's MetalJet sources are the world’s brightest microfocus x-ray tubes. Boasting incredible speed and impressive performance, liquid-metaljet anodes provide superior spot quality for your x-ray applications.

SC-1 HP: High-Pressure X-ray Diffraction

High-pressure x-ray diffraction data
Single-crystal high-pressure system

We offer MetalJet x-ray systems tailored for high-pressure crystallography applications. Our systems enable experiments with diamond anvil cells (DACs) up to 200 GPa.

With a 15-micron beam, the SC-1 HP combines the smallest beam size in a laboratory high-pressure system with an indium x-ray source for the best possible flux.

Learn more

X-PIX: Phase-Contrast Imaging

Our phase-contrast imaging systems enable high-contrast 3D x-ray imaging.

With advanced detection technology and intuitive controls, the X-Pix is the ultimate solution for detailed images of low-absorbing materials.

X-Pix phase-contrast imaging system

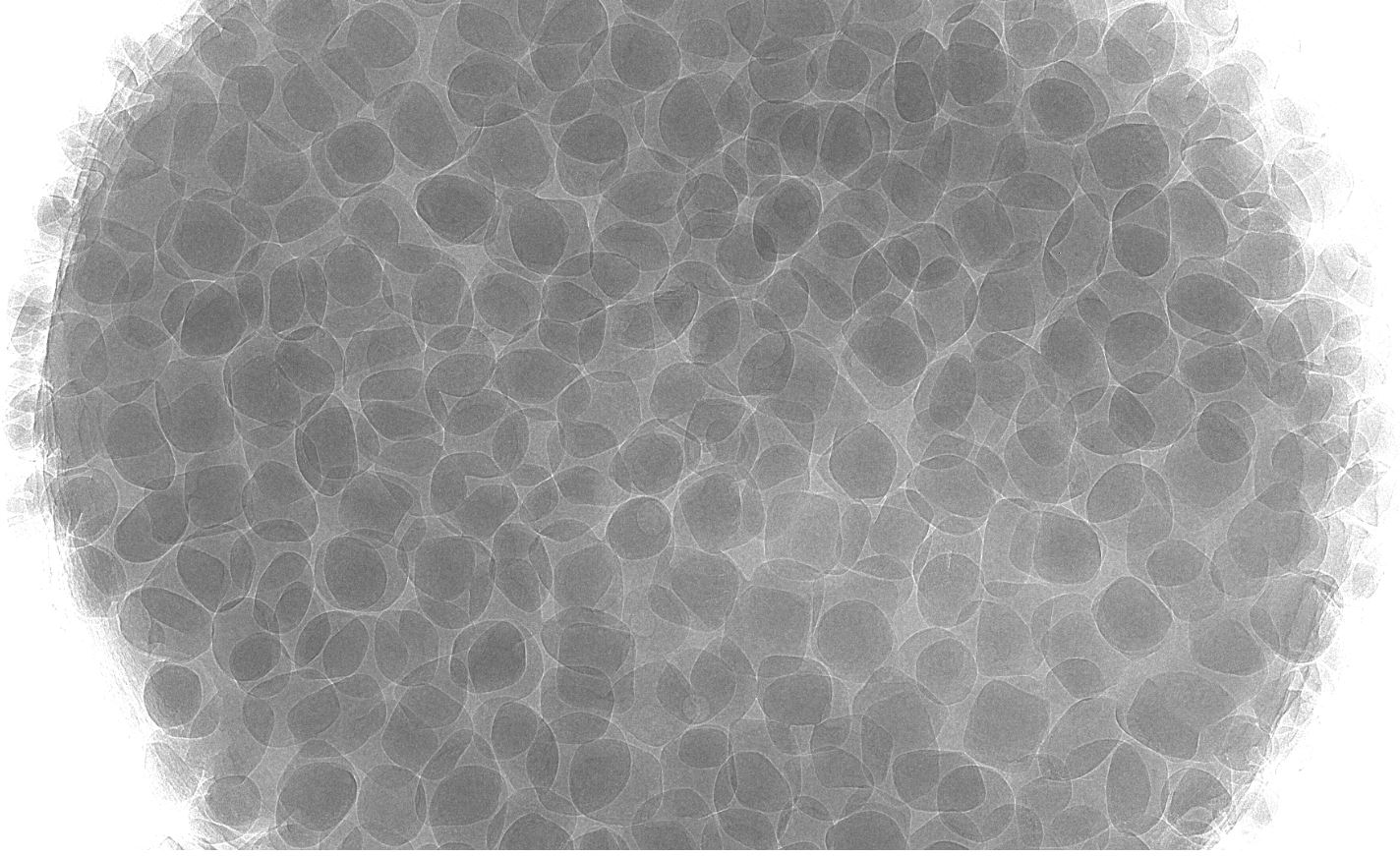

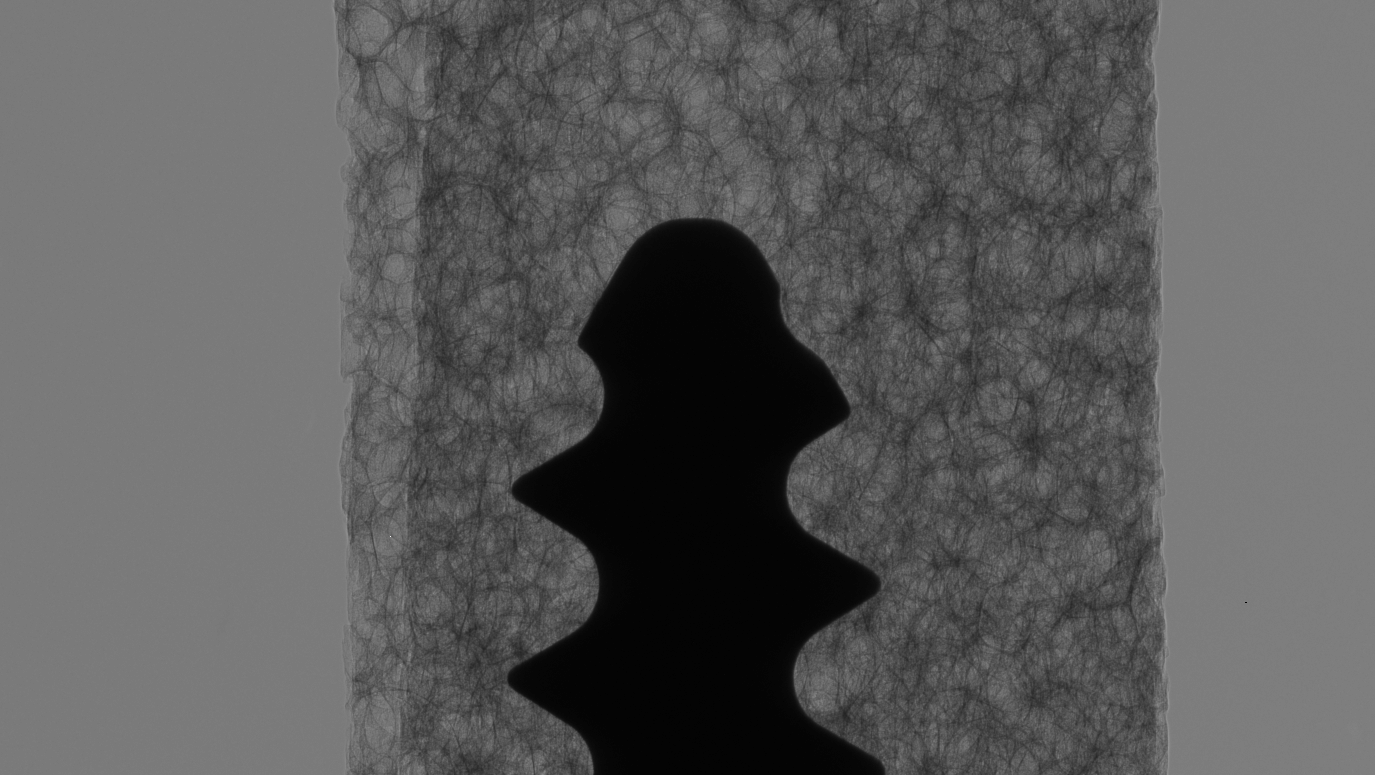

Phase-contrast image of a bonePhase-contrast image of a licorice candy

XDM-1: High-Energy Diffraction Microscopy (HEDM)

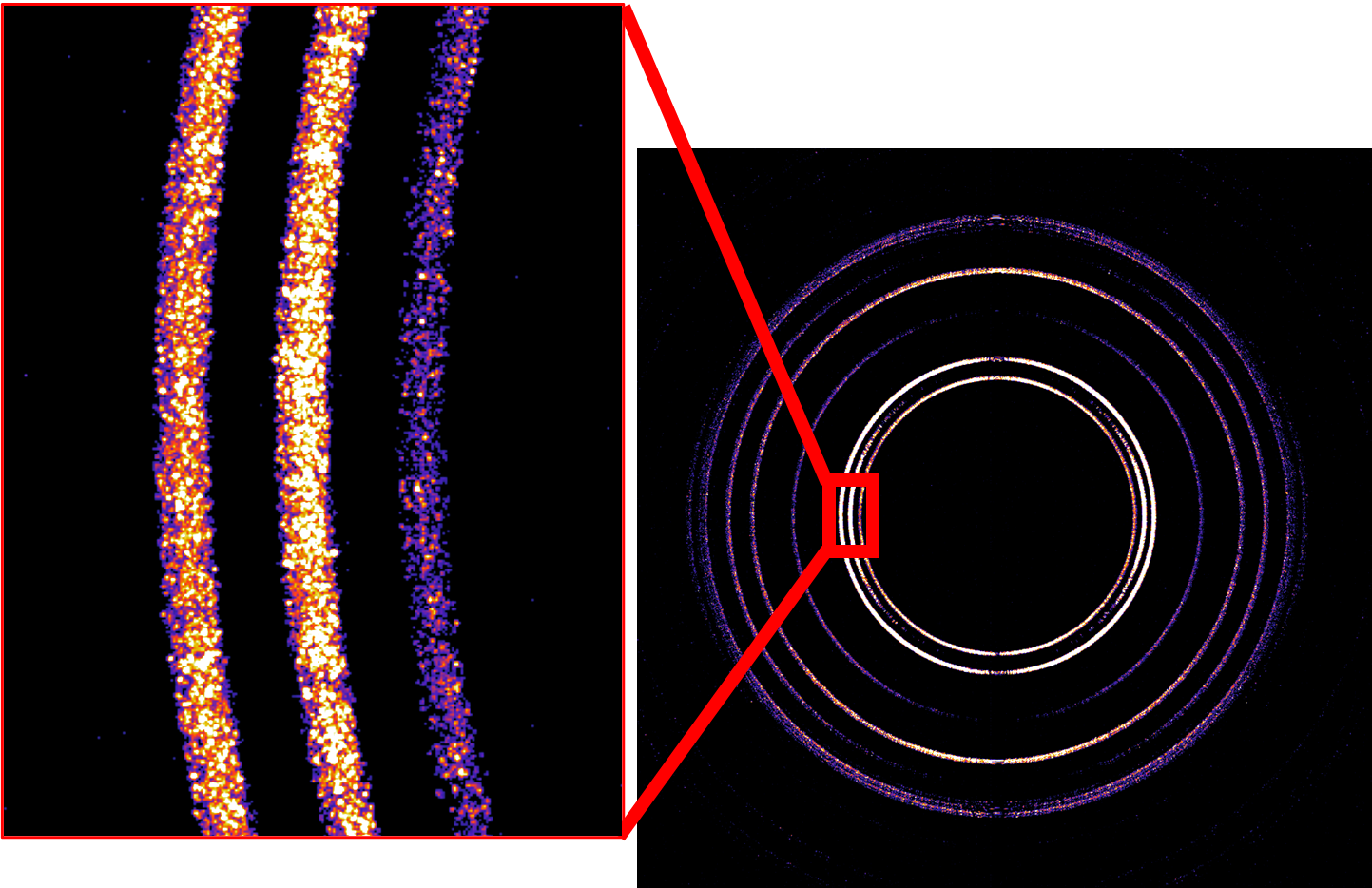

HEDM data

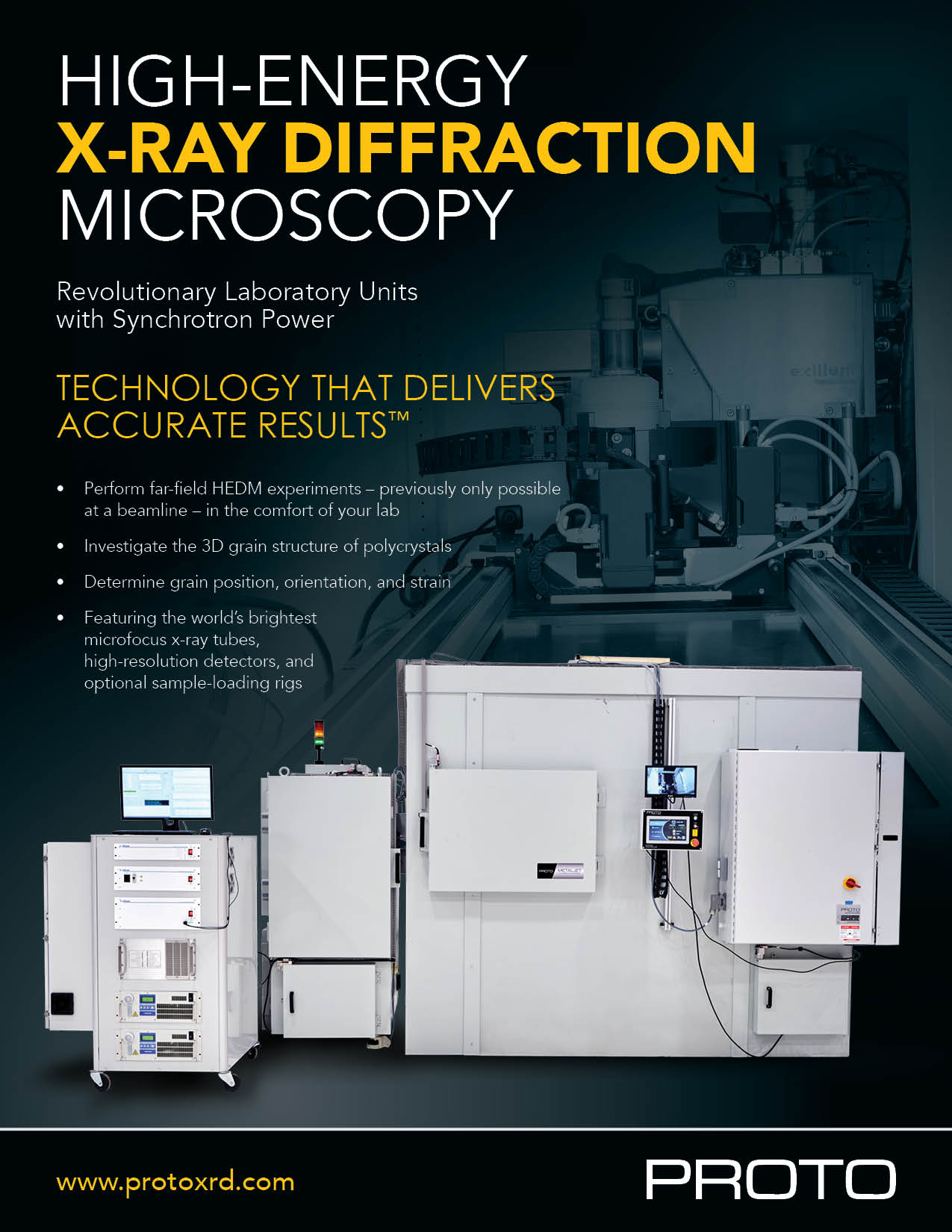

metaljet brochure

download pdf

XDM-1 HEDM system

Investigate grains within polycrystals, getting information about grain position, orientation, and strain.

The XDM-1 enables far-field HEDM experiments, which were previously only possible at a beamline.

In-situ tensile and compression loading rigs are also available.

Quick Contact Form
REQUEST A QUOTE OR INFORMATION

FEATURES AND BENEFITS

  • High-power loading capability
  • Choice of x-ray spectrum
  • Tunable spot size
  • Highly stable source position
  • Extreme microfocus source power
  • Superior spot quality
  • Optional dual port mode
  • User-variable size and aspect ratio of spot
  • Very stable x-ray emission and spot position
  • Minimal and predictable maintenance
  • LaB6 long-life cathode

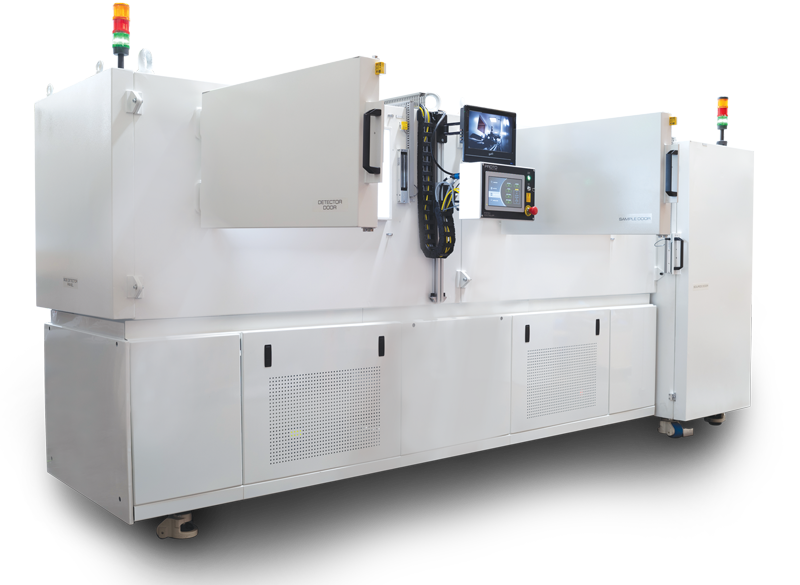

metaljet enclosure

AVAILABLE MODELS

  • MetalJet D2+ (70 kV)
  • MetalJet E1+ (160 kV)
  • MetalJet F1016 (160 kV)

APPLICATIONS OF METALJET SYSTEMS

  • Phase-contrast x-ray imaging
  • Micro-CT
  • High-energy diffraction microscopy (HEDM)
  • Crystallography
  • Small-angle x-ray scattering
  • High-throughput x-ray diffraction
Excillum MetalJet Source
Bright MetalJet Sources

BRIGHT Metaljet SOURCES

Robust MetalJet x-ray sources give you the speed and accuracy you need for complex experiments. Take your measurements to the next level by achieving synchrotron-like performance in your lab.

Custom Motion Options on MetalJet

Custom Motion OPTIONS

Sample and detector translation slides are fully customizable, providing the ultimate experimental flexibility. In addition, various sample rotation stages are available, as well as custom motion systems to suit your needs.

Touchscreen Metaljet

Easy-to-use Touchscreens

With our convenient touchscreen displays and controls, it is easier than ever to check the status of your system and make adjustments. Information is provided on motor positions, interlock status, the x-ray source, and more.

Proto’s custom systems combine the innovative features you expect from our instruments with the advanced capabilities of MetalJet x-ray sources

metaljet closeup

MODULARITY

Modular cabinet designs allow for easy operation, convenient reconfiguration, and future expansion of your system.

DESIGN FLEXIBILTY

With our state-of-the-art facilities and experienced team of scientists, we work with you to provide creative solutions for complex applications.

MULTIPLE BEAM LINES

Using a secondary port on the MetalJet or a translating slide within the cabinet, you have the flexibility to set up more than one experimental beam line.

RADIATION PROTECTION

Innovative enclosures, convenient status lights and interlocks, and zero-emission radiation shields ensure user protection.

MULTIPLE STAGE OPTIONS

Optimize data collection with rotation stages and custom-length translation slides.
