X-ray Diffraction

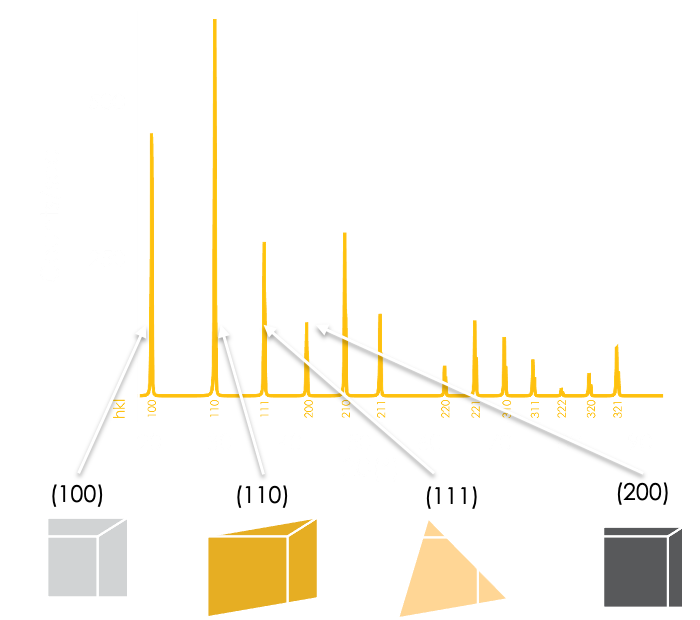

Information in an X-ray Diffraction Pattern

Peak position: Determined by the dimensions of the crystal (interplanar distances).

Peak intensity: Determined by where the atoms are located within the crystal (structural chemistry).

Peak shape: Determined by the size of the grains and crystal imperfections.
